A cold room, also known as a refrigerated chamber, is a temperature-controlled space designed for industrial use. It utilizes refrigeration equipment to maintain a specific temperature, typically lower than the surrounding environment.
Cold rooms play a crucial role in various industries, including food processing, chemical manufacturing, laboratories, and industrial production. They are essential for preserving products, ensuring quality, and maintaining safety standards throughout the manufacturing process.
When planning the design and construction of a cold room, several critical factors must be taken into account:
- Space Dimensions: Consider both the surface area and height, as sufficient clearance is required for proper installation of refrigeration equipment.
- Temperature Requirements: Determine the desired internal temperature and account for the difference between inside and outside temperatures. This requires knowledge of the minimum and maximum external temperature range at the cold room’s location.
- Operational Processes: Understand the internal workflows, including processing and handling equipment used within the cold room. These factors help in accurately designing the system to meet operational demands.
A cold room consists of several essential elements that ensure its efficiency and performance:
- Enclosure: The walls, ceiling, and sometimes even the floor require proper insulation to maintain temperature stability. The level of insulation depends on the required working conditions and the temperature difference between the interior and exterior.
- Access Doors: Often overlooked, access doors play a crucial role in preventing temperature loss due to frequent opening and closing. Choosing a high-quality door is essential for maintaining efficiency and reducing strain on refrigeration equipment.
- Climate Control Equipment: This machinery regulates and maintains the required temperature within the cold room, ensuring consistent performance.
The most effective way to construct a cold room enclosure is by using sandwich insulation panels specifically designed for cold storage. However, not all insulated panels offer the same quality and durability, so selecting the right type is critical.

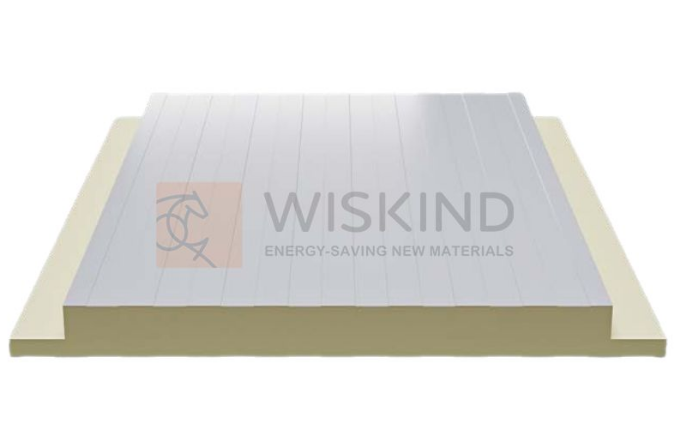

An insulated cold storage panel consists of two external metal sheets bonded to an insulating core. These metal sheets are typically made of steel with a protective outer coating, providing durability and thermal efficiency.
With various manufacturers offering different technologies and quality levels, it’s essential to understand the key factors that define a high-quality insulated cold storage panel. Choosing the right panel ensures durability, efficiency, and compliance with industry standards.
To make an informed decision, it's crucial to compare similar product ranges and select the most suitable option for your project’s specific needs.
While it may seem counterintuitive to evaluate cold storage panels based on fire resistance, this factor plays a significant role in industrial settings. Insurance companies often require fire-resistant materials for coverage, as cold room installations are exposed to high-risk conditions. A panel without fireproof properties may not qualify for an insurance policy that covers potential damages.
Although insulated cold storage panels share a basic structure with other insulated panels—featuring two external steel sheets and an insulating core—the similarities end there. Cold storage panels are specifically engineered to minimize thermal transmission, ensuring optimal temperature control and energy efficiency within the cold room.
Cold storage panel core thicknesses typically range from 3-1/8″, 4″, and 4-3/4″, though thicker options are available depending on project requirements.
Selecting the right panel thickness involves balancing initial investment costs with energy efficiency. Here’s a simple breakdown:
- Thicker panels provide better insulation, reducing the cooling system’s power requirements and overall energy consumption.
- Thinner panels may lower upfront costs but require more powerful cooling equipment, leading to higher energy consumption over time.
An optimal cold room design strikes the right balance between panel thickness and cooling system efficiency, ensuring cost-effectiveness and long-term energy savings.
For cold room projects requiring high levels of sanitation, specialized coatings and finishes can be applied to the inner surface of the panels. These coatings enhance cleanliness and help prevent the buildup of bacteria or contaminants.
Common coating options include:
- PET (Polyethylene Terephthalate)
- PVC 120μm (Polyvinyl Chloride, 120-micron thickness)
Both coatings are designed to inhibit microorganism growth, making them ideal for environments involving food storage and processing, as well as biological and chemical industries.
Choosing the right insulating core is crucial for optimizing thermal performance, fire resistance, and compliance with safety regulations. Here’s a breakdown of the most common core materials used in insulated cold storage panels:
- Expanded Polystyrene (EPS) & Extruded Polystyrene (XPS) offer good thermal insulation but have poor fire resistance due to their chemical composition.
- These materials are increasingly being phased out because they pose high fire risks and make it difficult or expensive to obtain accident insurance for cold room facilities.
- Polyurethane Foam (PUR) is a widely used core material with different quality levels. The key to selecting a high-performance PUR core lies in fire resistance properties, such as reduced smoke production and slower degradation under heat.
- Polyisocyanurate Foam (PIR) offers superior fire performance compared to PUR and can be FM Approved, meaning it meets international fire safety and insurance standards.
- However, to obtain full FM Approval certification for the cold room, the entire construction process must adhere to FM standards, not just the panels.
- Rock Wool Insulated Panels provide the highest level of fire protection, with options offering 60, 120, or 240 minutes of fire resistance, depending on density and thickness.
- Many developed countries have banned the use of EPS, XPS, and even some PUR panels in cold room construction, allowing only PIR panels with FM Approval or Rock Wool Core Panels for maximum safety.
By selecting the appropriate insulated panel core, businesses can improve energy efficiency, enhance fire safety, and meet industry regulations for long-term durability and reliability.
Each refrigeration panel manufacturer offers a unique fastening system or joint design. It is essential to select a system that ensures optimal watertightness and impermeability between panels, as this directly impacts temperature retention inside the cold room.
In most cases, a tongue-and-groove joint provides a secure connection between panels. However, for enhanced security and sealing, some refrigeration panels feature a mechanically tightened connection, commonly known as a "hook" connection.
The "hook" connection is a mechanical fastening mechanism that ensures maximum precision and airtight sealing between panels. This system operates through a manual adjustment process during assembly, allowing for a tightly secured and reliable fixation.
In cold rooms where there are significant temperature differences between the interior and exterior, polyisocyanurate (PIR) foam boards are recommended for floor insulation to prevent cold loss. These PIR foam boards are typically installed across the entire cold storage floor to ensure optimal thermal insulation. They are usually placed beneath a layer of reinforced concrete, which serves as the cold room floor.
The ceiling of a cold room is constructed using the same insulated panels as the walls. These panels are securely fastened using cable anchoring systems, which attach them to the main structure of the building that houses the cold room.
Understanding the characteristics, intended use, and certifications required for your cold room is crucial in selecting the appropriate insulated panels with the ideal core type.
Depending on the internal working conditions and the temperature differential with the outside environment, cold rooms may require thermal insulation in the walls, ceilings, and sometimes the floor. There are specialized systems and products designed to ensure optimal performance in all of these areas.
A well-designed cold room achieves the right balance between the thickness of the insulated panels and the cooling equipment to optimize energy consumption. This design process is typically carried out by a specialized technician who takes into account factors such as conditions, location, and the specific needs of the installation.
