Cold rooms are essential in warehouses that store materials with limited shelf lives, such as fresh produce, meat, beverages, and medicine. These facilities operate on the principle of maintaining an optimal temperature to ensure the longevity of the materials inside. While cold rooms vary in size and the materials they store, they all incorporate insulation to maintain a consistent internal temperature. While the refrigeration system is responsible for reaching the desired temperature, the insulation plays a crucial role in keeping it stable over time.
Depending on the type of cold room and refrigeration system, users can adjust the insulation features for better performance. One of the most common types of insulation used in cold rooms is the cold room or insulation panel.
Cold room panels are insulated panels consisting of two main components: a core and two structural boards. The core is typically made from PIR or PU, providing thermal insulation, while the structural boards are usually constructed from Pre-Painted Galvanized Steel (PPGI) or Stainless Steel. These panels are essential in constructing cold rooms, as they help maintain a constant internal temperature by preventing cold air leakage and ensuring the structural integrity of the cold room.
These panels can be used on floors, walls, and roofs, though they require additional supporting materials to ensure stability. Without cold room panels, it would be challenging to maintain a consistent temperature. Due to their effectiveness, these insulated panels are often utilized for general thermal insulation purposes across various industries.
Cold room or insulated panels are typically manufactured in small sections for easy transportation and installation. Their thickness can range from four to nine inches, depending on the specific design requirements of the cold room.
It is recommended to use these panels during the initial construction phase, as this helps reduce costs and ensures the structural integrity of the cold room. Installing insulation panels after construction may result in suboptimal performance, leading to potential cold air leakages.
There are various types of cold room panels, each designed for specific applications and cold room requirements. The selection of the appropriate panel depends on the cold room’s design and intended use. Consulting with experts, such as mechanical engineers, can ensure the correct panel is chosen based on the temperature needs and overall design specifications.
Here are some common types of cold room or insulated panels:
Expanded Polystyrene (EPS) Insulated Panels use high-quality, lightweight foam with closed-cell insulation technology. This rigid foam is available in different strengths to match the load and back-fill requirements of the cold room. Closed-cell insulation offers excellent water resistance and serves as a strong vapor barrier, preventing cold air leaks.
Neopor Insulated Panels are made with Neopor Graphite Polystyrene (GPS), a high-performance foam that is around 20% more energy-efficient than standard EPS insulation. These panels are ideal for new construction or major renovations and can be installed behind siding or beneath freezer slabs for enhanced thermal efficiency.
Polyurethane (PU) Insulated Panels are among the most commonly used insulation solutions for cold rooms, freezers, and chillers. With high thermal resistance, they are perfect for cold room applications that need quick assembly. These panels are typically installed using a tongue-and-groove system for easy and effective setup.
For an eco-friendly option, Compressed Straw Core Insulated Panels are made from renewable, sustainable materials like agricultural straw. While they are cost-effective and environmentally friendly, their thicker and heavier nature means they offer slightly less insulation efficiency compared to other panel types.
Polyisocyanurate (PIR) Insulated Panels are known for their extremely low thermal conductivity, light weight, and high strength-to-weight ratio. PIR panels are particularly well-suited for construction projects where superior thermal resistance and fire performance are required. These panels can meet stringent fire safety standards, making them an excellent choice for demanding cold room applications.

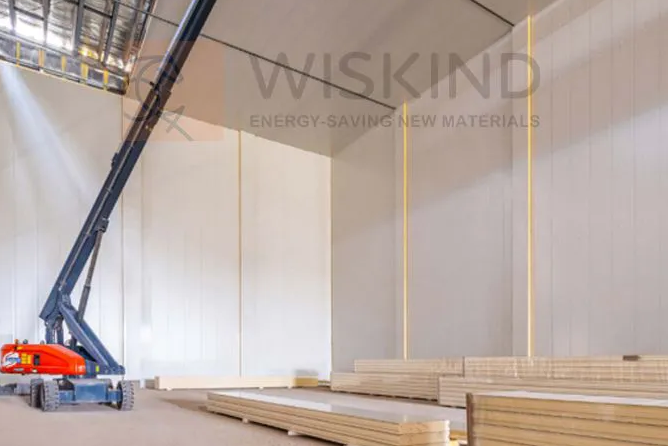

The installation of cold room panels depends on the size and type of cold room being set up. For smaller cold rooms, user-friendly kits with clear instructions are available, making the installation process relatively simple. However, industrial-grade cold rooms require a professional installation team. Regardless of the scale, some basic prerequisites for installation include:
- Pre-set insulation panels
- Measuring tape
- Allen key
- Screwdrivers and applicable screws
Cold room panels offer numerous benefits, including improved thermal insulation, reduced energy costs, and enhanced long-term performance of refrigeration systems. Additionally, they contribute to the structural stability and integrity of cold rooms.
