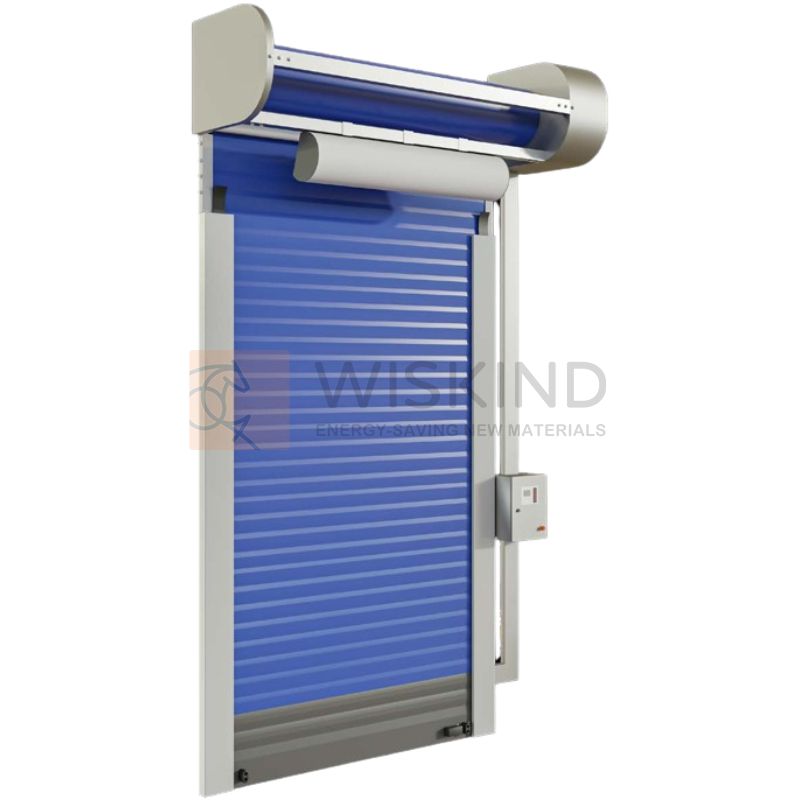

The vertical lifting cold storage door is a versatile cold room system available in various thicknesses, widths, and heights. Its flexible design allows for adaptation to a multitude of architectural applications. These insulated cold room doors boast superior air-tightness, high R-value thermal performance, and low thermal bridging, which can lead to energy cost savings of up to 30% compared to traditional multi-part cold storage doors.
Cold storage lifting door features
Energy Efficiency
Designed to save energy with their excellent sealing capabilities and high thermal resistance, reducing energy costs significantly.
Space-Saving Design
Ideal for applications with minimal side space or where multiple door openings are in close proximity, such as warehouse loading docks.
Compatibility with Forklifts and Freight Vehicles
Suited for use with forklifts and other freight vehicles, facilitating straight-through traffic.
Manual and Electric Operation Options
Available in both manual and electric operation modes, making vertical lift doors suitable for a variety of environments and needs.
Customization and Quality Assurance
◆ Suitable for indoor and outdoor applications in cold rooms, freezers, and industrial buildings.
◆ The door track design ensures smooth passage and tight sealing.
◆ All cold room lifting doors are custom-made according to your specific requirements.
◆ Each door undergoes comprehensive testing before shipment.
Specifications
| Max Dimensions | W 3,000mm x H 5,000mm |
| Power Supply | 220V, 50HZ, motor power of 1.5KW, heating cable of 30W/m for electrical components and mechanical parts |
| Operating Speed | 0.8m-2.4m/s |
| Operating Life | Not less than 1,000,000 cycles |
| Operation Mode | Remote control, manual, motorized (pull cord switch or button), linkage with relevant equipment |
| Insulation | Low thermal conductivity material, quick opening to block air convection and reduce energy consumption |
| Door Thickness | 10-60mm, cold bridge cutoff structure |
| Door Material | Low temperature resistant PVC door curtain, color customizable |
Certifications
Need A Custom Solution?
Feel free to reach out for any queries. We would be happy to help!
